Motorola Atrix

From MILEDROPEDIA
Jump to: navigation, search

Contents

FCC information

FCC ID: IHDP56LS1

Parts list


PCB photos

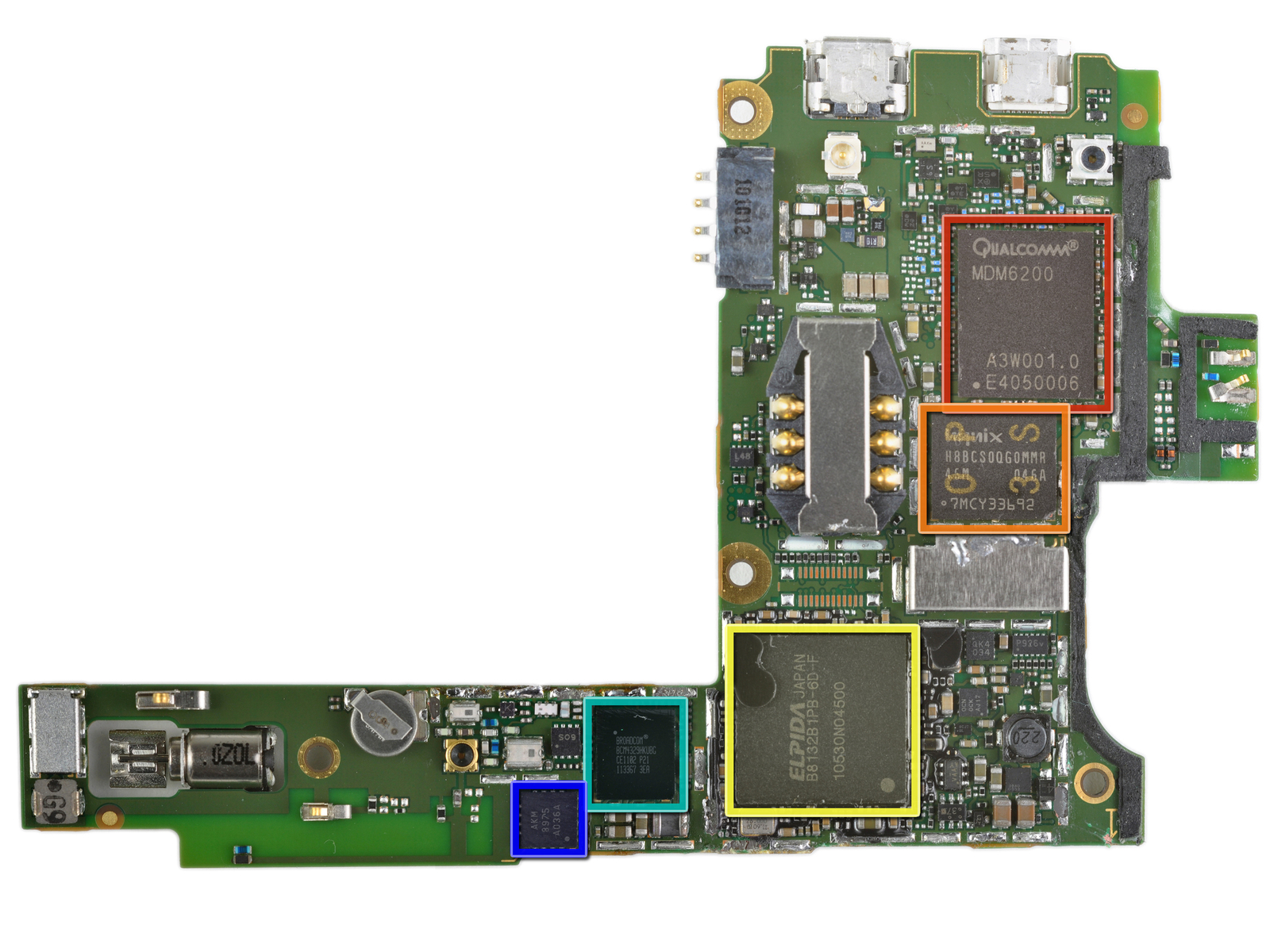

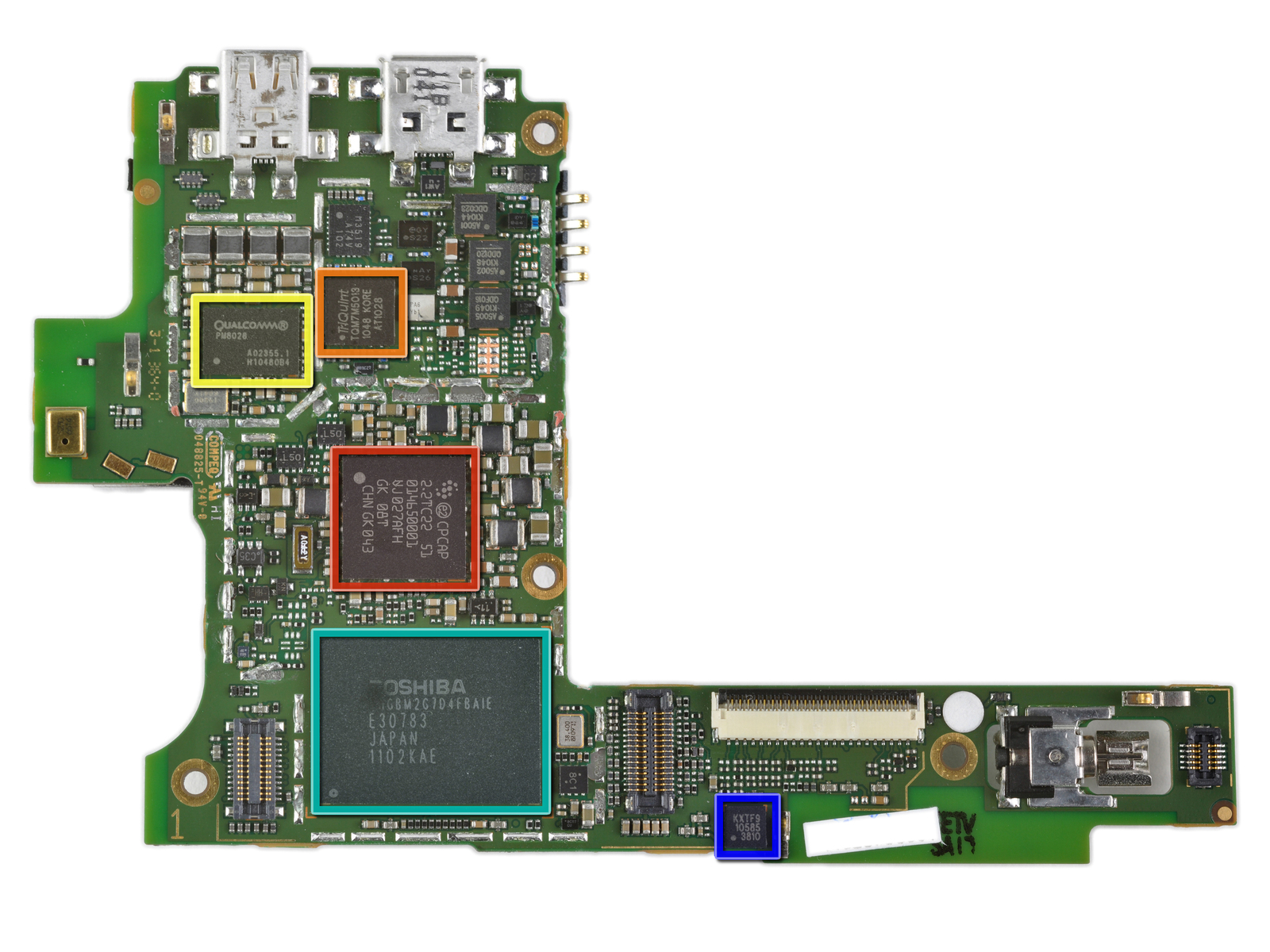

Atrix One Side.jpg Atrix Second Side.jpg

CPU

Processor      : ARMv7 Processor rev 0 (v7l)
processor      : 0
BogoMIPS        : 1998.84

Features        : swp half thumb fastmult vfp edsp vfpv3 vfpv3d16
CPU implementer : 0x41
CPU architecture: 7
CPU variant    : 0x1
CPU part        : 0xc09
CPU revision    : 0

Hardware        : Olympus
Revision        : 83f0
Serial          : 027c108040a02297

cat /proc/bootinfo
POWERUPREASON : 0x00004000
BL_VERSION : 0x00000007
UBOOT_VERSION : 0x00000000
CID_RECOVER_BOOT : 0x00

Interrupts

cat /proc/interrupts

          CPU0      CPU1
36:          1          0        PPI  NvOsIrqKern0036
46:      1120          0        PPI  mmc1
51:          0          0        PPI  mmc2
52:      2626          0        PPI  tegra-otg, ehci_h
61:          0          0        PPI  NvOsIrqKern0061
62:      2579          0        PPI  NvOsIrqKern0062
63:      61885          0        PPI  mmc0
70:      28244          0        PPI  NvOsIrqKern0070
73:        33          0        PPI  timer0
74:      48502          0        PPI  timer_lp2wake
85:      4414          0        PPI  NvOsIrqKern0085
86:    129276          0        PPI  NvOsIrqKern0086
91:          0          0        PPI  NvOsIrqKern0091
109:          0          0        PPI  mc_status
114:        127          0        PPI  NvOsIrqKern0114
115:          0          0        PPI  NvOsIrqKern0115
116:          0          0        PPI  NvOsIrqKern0116
117:          0          0        PPI  tegra-kbc
118:      11330          0        PPI  cpcap-irq
122:      1317          0        PPI  tegra_uart_3
124:          0          0        PPI  NvOsIrqKern0124
129:        554          0        PPI  ehci_hcd:usb2
136:          0          0        PPI  dma_channel_0
137:          0          0        PPI  dma_channel_1
138:          0          0        PPI  dma_channel_2
139:        480          0        PPI  dma_channel_3
140:          0          0        PPI  dma_channel_4
141:        466          0        PPI  dma_channel_5
142:        87          0        PPI  dma_channel_6
143:        90          0        PPI  dma_channel_7
144:          2          0        PPI  dma_channel_8
145:        18          0        PPI  dma_channel_9
146:          6          0        PPI  dma_channel_10
147:          0          0        PPI  dma_channel_11
148:          0          0        PPI  dma_channel_12
149:          0          0        PPI  dma_channel_13
150:          0          0        PPI  dma_channel_14
151:          0          0        PPI  dma_channel_15
192:        629          0        GPIO  uart_wake_host
217:          0          0        GPIO  NvOsIrqKern0217
225:      2260          0        GPIO  isl29030_als_ir
226:          0          0        GPIO  akm8975
237:        565          0        GPIO  ts_intr
261:          0          0        GPIO  mmc2
281:          0          0        GPIO  spi_mrdy
288:      25468          0        GPIO  mdm_ctrl
289:          0          0        GPIO  mdm_ctrl
293:        226          0        GPIO  aes_int
344:          0          0        GPIO  mdm_ctrl
362:          1          0        GPIO  mdm_ctrl
363:        19          0        GPIO  kxtf9_irq
IPI:      11834      28925
LOC:    107529      10926
Err:          0

Iomem

cat /proc/iomem

00000000-13ffffff : System RAM
  0003a000-005fffff : Kernel text
  00600000-00730917 : Kernel data
20000000-29ffffff : System RAM
2a000000-3fffffff : System RAM
50000000-50023fff : host1x
  50000000-50023fff : tegra_grhost
54040000-5407ffff : mpe
  54040000-5407ffff : tegra_grhost
54080000-540bffff : vi
  54080000-540bffff : tegra_grhost
54100000-5413ffff : isp
  54100000-5413ffff : tegra_grhost
54200000-5423ffff : display
  54200000-5423ffff : tegra_grhost
54240000-5427ffff : display2
  54240000-5427ffff : tegra_grhost
58000000-59ffffff : tegra_gart
70006040-7000605f : serial
7000e200-7000e2ff : tegra-kbc
  7000e200-7000e2ff : tegra-kbc
7000f000-7000f3ff : tegra_gart
c5000000-c5003fff : tegra-udc.0
  c5000000-c5003fff : tegra-ehci.0
    c5000000-c5003fff : tegra-otg.0
      c5000000-c5003fff : tegra-udc
c5008000-c500bfff : tegra-ehci.2
  c5008000-c500bfff : tegra-ehci.2
c8000000-c80001ff : tegra-sdhci.0
  c8000000-c80001ff : tegra-sdhci.0
c8000400-c80005ff : tegra-sdhci.2
  c8000400-c80005ff : tegra-sdhci.2
c8000600-c80007ff : tegra-sdhci.3
  c8000600-c80007ff : tegra-sdhci.3

Devices

cat /proc/devices

Character devices:
  1 mem
  4 /dev/vc/0
  4 tty
  4 ttyS
  5 /dev/tty
  5 /dev/console
  5 /dev/ptmx
  7 vcs
10 misc
13 input
21 sg
29 fb
66 ttySPI
89 i2c
90 mtd
108 ppp
128 ptm
136 pts
166 ttyACM
180 usb
188 ttyUSB
189 usb_device
216 rfcomm
234 ts0710mux
249 hidraw
250 ttyGS
251 usbmon
252 ttyHS
253 nvhost
254 rtc

Block devices:
259 blkext
  7 loop
  8 sd
11 sr
31 mtdblock
65 sd
66 sd
67 sd
68 sd
69 sd
70 sd
71 sd
128 sd
129 sd
130 sd
131 sd
132 sd
133 sd
134 sd
135 sd
179 mmc
254 device-mapper

Partitions

major   minor  #blocks  name            Label
179        0   15541760 mmcblk0
179        1       3584 mmcblk0p1             (bootloader,ptable,microboot+sig+free)
179        2        512 mmcblk0p2                         (BCT)
179        3       2048 mmcblk0p3       pds             type=ext2
179        4          1 mmcblk0p4
179        5       1024 mmcblk0p5
179        6        512 mmcblk0p6
179        7        512 mmcblk0p7
179        8       1024 mmcblk0p8
179        9       2048 mmcblk0p9
179       10       8192 mmcblk0p10
179       11       8192 mmcblk0p11
179       12     327680 mmcblk0p12      system          type=ext3
179       13     786432 mmcblk0p13                              type=ext3
179       14      20480 mmcblk0p14      MOTOROLA        TYPE=iso9660
179       15     655360 mmcblk0p15                              type=ext3
179       16    2097152 mmcblk0p16                              type=ext3
179       17     353280 mmcblk0p17      preinstall      sec_type=ext2  type=ext3
179       18   11233792 mmcblk0p18      MB860           type=vfat
CG2	no	  22,528	Partition table
CG5	sig	20845608	Radio
CG42	sig      3145728	MOSTLY EMPTY
CG44	sig      3145728	Bootloader?
CG47	sig	  262144	Microboot (Engine and Slot for hashing in microboot priv.c)

			     rdl.bin ?????????
			     ptable  ?????????
			     CDT.bin ?????????
			     BCT.bin ?????????
			     PT.bin  ?????????
			     EBT.bin ?????????
			     MBR.bin ?????????
			     EBB.bin ?????????
			     NVC.bin ?????????
	     mmcblk0p1		 	       3670016
	CG3  mmcblk0p2 ext2  CDT.???	        524288	points 0x0000 androidboot.bootloader
100%	     mmcblk0p3       PDS.bin	       2097152	Persistent Data Storage
	     mmcblk0p4	     EBR.bin              1024	Extended Boot Record?
100%	     mmcblk0p5	     SP.bin            1048576	Signature
	     mmcblk0p6	     CID.bin	        524288	UNKNOWN?
	     mmcblk0p7	     MSC.bin	        524288	Misc?
100%	CG53 mmcblk0p8 	     LOG.bin  no       1048576	Logo (boot)
100%	     mmcblk0p9	     KPA.bin	       2097152	Kernel Panic Data
100% 	CG55 mmcblk0p10 ext3 SOS.bin sig       8388608	Recovery
100% 	CG56 mmcblk0p11 ext3 LNX.bin sig       8388608	Boot Image - Linux zImage + Ramdisk
100%	CG57 mmcblk0p12 ext3 APP.bin sig     335544320	System
100%	CG58 mmcblk0p13 ext3 OSH.bin sig     805306368 	OSH WebTop
100% 	CG59 mmcblk0p14 HFS  CDR.bin sig      20971520	CDROM (Motorola Helper)
100%	     mmcblk0p15 ext3 CAC.bin	     671088640	Cache image
100%	     mmcblk0p16 ext3 UDA.bin 	    2147483648	Userdata image
100%	CG62 mmcblk0p17 ext3 PIA.bin	     361758720 	Preinstalled image
100%	     mmcblk0p18 fat  SDC.bin	   11233792k	Internal SDCARD
			     EBF.bin			??????
			     NVF.bin			??????


512k ? CDT/EBR/CID/MSC/MBR
CG50,CG51,CG52,CG54,CG60,GG61 are empty
mount
rootfs / rootfs ro,relatime 0 0
tmpfs /dev tmpfs rw,relatime,mode=755 0 0
devpts /dev/pts devpts rw,relatime,mode=600 0 0
proc /proc proc rw,relatime 0 0
sysfs /sys sysfs rw,relatime 0 0
none /acct cgroup rw,relatime,cpuacct 0 0
tmpfs /mnt/asec tmpfs rw,relatime,mode=755,gid=1000 0 0
none /dev/cpuctl cgroup rw,relatime,cpu 0 0
/dev/block/mmcblk0p12 /system ext3 ro,noatime,nodiratime,data=ordered 0 0
/dev/block/mmcblk0p16 /data ext3 rw,nosuid,nodev,relatime,data=ordered 0 0
/dev/block/mmcblk0p15 /cache ext3 rw,nosuid,nodev,relatime,data=ordered 0 0
/dev/block/mmcblk0p3 /pds ext2 rw,nosuid,noexec,relatime 0 0
/dev/block/mmcblk0p13 /osh ext3 rw,relatime,errors=continue,data=ordered 0 0
tmpfs /osh/lib/init/rw tmpfs rw,nosuid,relatime,mode=755 0 0
varrun /osh/var/run tmpfs rw,nosuid,relatime,mode=755 0 0
varlock /osh/var/lock tmpfs rw,nosuid,nodev,noexec,relatime 0 0
securityfs /sys/kernel/security securityfs rw,relatime 0 0
/dev/block/mmcblk0p17 /preinstall ext3 ro,noatime,nodiratime,data=ordered 0 0
/proc /osh/proc proc rw,relatime 0 0

Downloads

Relevant downloads from http://gitbrew.org/atrix/

Tegra Documention (From NVIDIA) - http://gititbit.ch/aDj8
Olympus Engineering Device Dump - http://gititbit.ch/aEd2
Tegra Crypto Engine Source Snapshot - http://gititbit.ch/tces1
OLYFR U4 1.5.2 /system dump - http://gititbit.ch/aOw2
Olympus Kernel Source - http://gititbit.ch/aOw3
Handset_USB_Driver_32_v4.9.0 - Moto Atrix Driver - http://gititbit.ch/aUSB1
Handset_USB_Driver_64_v4.9.0 - Moto Atrix Driver - http://gititbit.ch/aUSB2
