Motorola Droid X
From MILEDROPEDIA
FCC information
FCC ID: IHDT56LB1

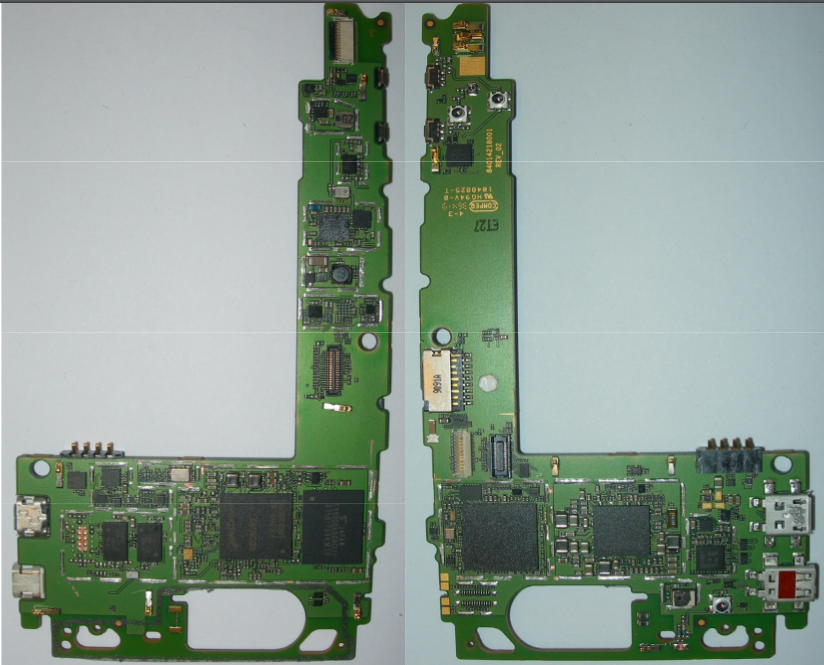

Parts list
- CPU = Texas Instruments OMAP3630 in Unknown PoP (Cortex A8 PoP solution)
- Power/Audio = Texas Instruments TWL5030 Power Management (Catalog name TPS65950)
- DSP = Texas Instruments TMS320C6454 in Unknown PoP
- Baseband = Qualcomm QSC6085
- RF = Avago FEM7758 and TriQuint TQM613029
- Wireless = Texas Instruments WL1273
- Flash Memory & DRAM = Hynix H8KMS series - model unknown in Unknown PoP
- Touch Screen Controller = Atmel ATmega324P
- Camera = OmniVision OV8810 Image CMOS sensor
- Backlight = National Semiconductor LM3530
- Camera LED = National Semiconductor LM3554
- Torch LED = National Semiconductor LM3559
- EMI Filter = ON Semiconductor NUF8401MNT4G
- SD EMI Filter = California Micro Devices CM1692
- EL Lamp Driver = Supertex HV861
- MTD = Secure Digital card connected to OMAP MMC/SD host
- UART = Three OMAP on-chip UARTs and on-chip STI debugging console
- Bluetooth = TriQuint TQM679002
- Magnetometer and Temperature sensor = Asahi Kasei Microsystems AK8973N
- Accelerometer = STMicroelectronics LIS331DLH
- Proximity sensor = OSRAM Opto Semiconductors SFH7743 and OSRAM Opto Semiconductors SFH4058
- Battery charger = BD7885
